Dual Purpose Safety Temperature Control Unit 3 Phase Water Cooled Centrifugal Chiller

Product Details:

Brand Name:	DONGXING

Detail Information

Brand Name:

DONGXING

Cooling Type:

Air-cooled Or Water-cooled

Heating Type:

Electric Or Steam

Power Supply:

3-phase, 380V/50Hz

Heating Power:

60kw

Dimensions:

Depends On Model

Color:

White

Control System:

Microprocessor-based

Noise Level:

Less Than 70 DB

Heating Capacity:

Up To 1200 KW

Certifications:

CE, ISO9001

Condition:

Brandnew

Compressor Type:

Scroll, Screw, Or Centrifugal

Cooling Capacity:

Up To 1000 KW

Weight:

Depends On Model

Evaporator:

Shell & Tube Type

Highlight:

High Light

Highlight:

Dual Purpose Temperature Control Unit

Safety recirculating heater chiller

3 Phase Water Cooled Centrifugal Chiller

Trading Information

Minimum Order Quantity:

Price:

6000-2000000RMB/Set

Packaging Details:

Plywood case

Delivery Time:

15-30days

Payment Terms:

T/T

Product Description

Cooling and Heating Dual-Purpose Temperature Control Unit (Low Temperature 5℃-High Temperature 90℃)

Key Features

Provides dual-use integration of cooling and heating circulating water for industrial applications

Maintains constant temperature at ±2°C with one-key operation and fast heating/cooling conversion

Features imported brand new compressors from USA/Japan with built-in safety protection

Equipped with Schneider electrical components for reliable performance

Includes comprehensive protection measures with intelligent fault indication and buzzer alarm

Technical Specifications

Attribute	Value
Cooling Type	Air-cooled or water-cooled
Heating Type	Electric or steam
Power Supply	3-phase, 380V/50Hz
Heating Power	60kw
Control System	Microprocessor-based
Noise Level	Less than 70 dB
Heating Capacity	Up to 1200 kW
Cooling Capacity	Up to 1000 kW
Compressor Type	Scroll, screw, or centrifugal
Evaporator	Shell & Tube type
Certifications	CE, ISO9001
Condition	Brand new
Color	White

Model Performance Parameters

Item model	DX-3M	DX-5M	DX-8M	DX-10M	DX-12M	DX-15M
Cooling capacity (Kcal/h)	6803	11094	17,604	22188	25146	35500
Cooling capacity (KW)	7.91	12.9	20.47	25.8	29.24	41.28
Input total power (KW)	9.33	14.8	21.25	22.37	29.58	33.82
Power supply	3PH-380V-50HZ
Refrigerant	R22
Control method	Capillary	Externally balanced thermal expansion valve
Compressor type	Fully enclosed scroll type (piston type)
Compressor power (KW)	2.8	4.66	7.95	8.85	9.98	13.62
Condenser type	High efficiency copper tube sleeve aluminum fin type + low noise external rotor fan
Cooling air volume (m3/h)	3000	5000	8000	10000	12000	15000
Evaporator type	Water tank coil (shell and tube type)
Chilled water volume (m3)	1.36	2.22	3.52	4.44	5.03	7.1
Water tank capacity (L)	50	70	120	200	200	270
Inlet/outlet pipe diameter	1"	1"	1"	1-1/2″	1-1/2″	2"
Water pump power (KW)	0.37	0.75	0.75	0.75	1.1	1.5
Water pump head (M)	20	20	22	20	20	20
Heating equipment power (KW)	6	9	12	12	18	18
Safety protection	Compressor overheat protection, overcurrent protection, high/low pressure protection, over temperature protection, flow protection, phase sequence/phase loss protection, exhaust overheat protection, antifreeze protection
Dimensions (L×W×H mm)	930×520×975	1140×560×1040	1300×720×1350	1530×760×1470	1680×810×1280	1800×990×1680
Machine weight (Kg)	135	175	320	450	530	750

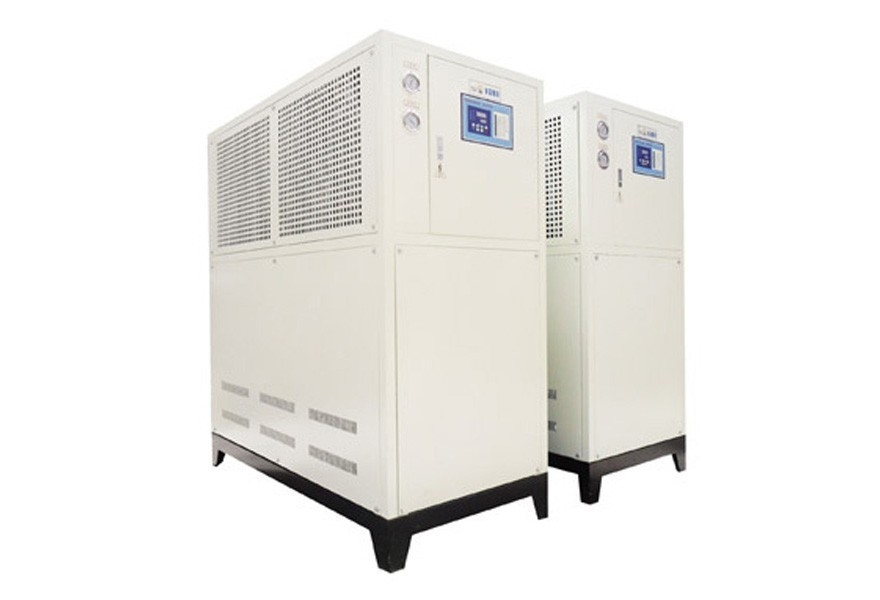

Product Images

Industrial Applications

The DX-M series dual-purpose temperature control units are widely used in:

Sponge manufacturing processes
Composite foaming applications
Pharmaceutical production
Chemical processing industries
