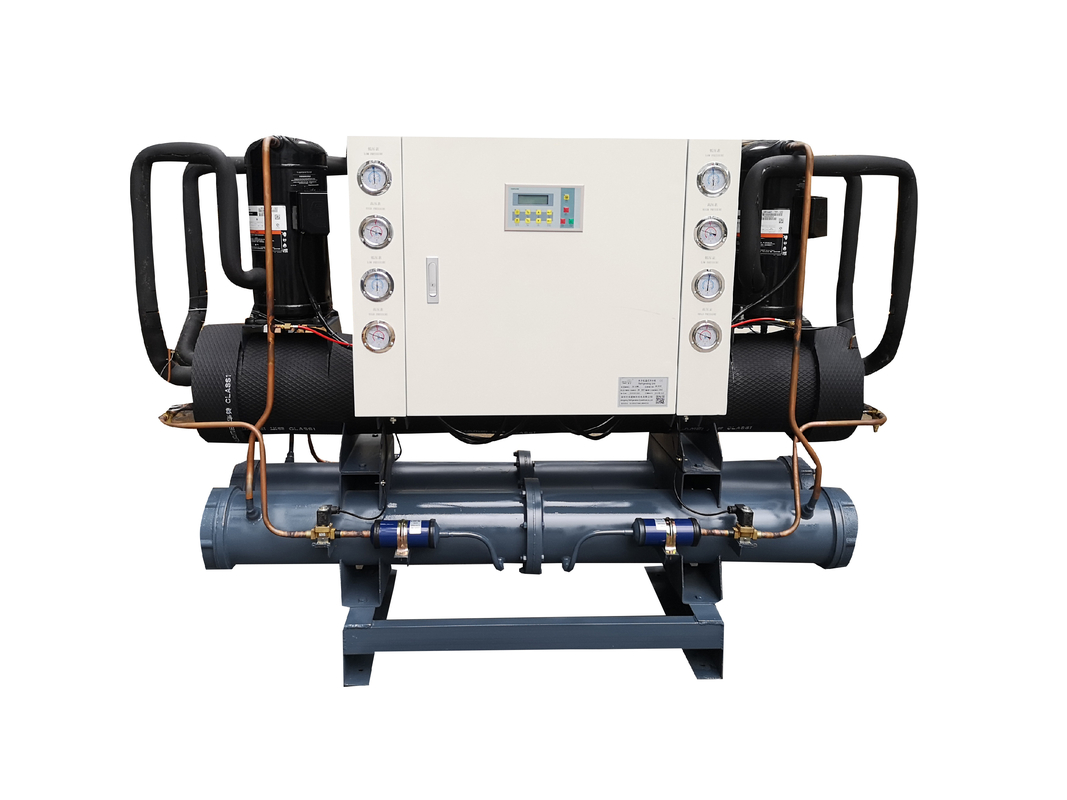

Energy Saving Industrial Water Chiller Electrical Control 35HP Industrial Chiller System

Product Details:

Brand Name:	DONGXING

Detail Information

Brand Name:

DONGXING

Evaporator:

Water Tank Coil

Certifications:

CE/ISO9001

Running Noise:

75 DB(A)

Ambient Temperature:

-25℃~+45℃

Compressor Type:

Scroll/Screw

Showroom Location:

None

Input Power:

48.6 KW

Temperature:

5℃~30℃

Filtration Rating:

50-3500 Microns

Circuit Number:

1~2

Weight:

176kg

Power Supply:

3 Phase, 380V/50Hz

Condition:

Brand New

Evaporator Type:

Shell And Tube/Plate

Necessary Refrigeration:

982KW

Highlight:

High Light

Highlight:

Energy Saving Industrial Water Chiller

Electrical Control Industrial Water Chiller

35HP Industrial Chiller System

Trading Information

Minimum Order Quantity:

Price:

6000-2000000RMB/Set

Packaging Details:

Plywood case

Delivery Time:

15-30days

Payment Terms:

T/T

Product Description

Durable and Energy-Saving Industrial Water Chiller with Imported Compressor and Electrical Control (35HP-50HP)

Product Specifications

Attribute	Value
Evaporator	Water Tank Coil
Certifications	CE/ISO9001
Running Noise	75 DB(A)
Ambient Temperature	-25℃~+45℃
Compressor Type	Scroll/Screw
Input Power	48.6 KW
Temperature Range	5℃~30℃
Filtration Rating	50-3500 microns
Circuit Number	1~2
Weight	176kg
Power Supply	3 phase, 380V/50Hz
Condition	Brand new
Evaporator Type	Shell and Tube/Plate
Necessary Refrigeration	982KW

Product Features

Customizable Options: Available in acid-proof, anti-corrosion, frequency conversion, and explosion-proof configurations
Durable Construction: Features fully sealed low-noise, low-vibration imported compressor and imported brand electrical components
Efficient Heat Exchange: Shell and tube condenser design offers high efficiency and easy maintenance
Energy Saving: Digital electronic thermostat precisely controls temperature (3℃ to 50℃) for optimal energy efficiency
Safety Features: Includes compressor delay start protector, overload current protector, high/low voltage protector, and safety valves
Reliable Operation: Dual-circuit refrigeration option available (10P+) for continuous operation during maintenance

Technical Specifications

Model	DX-03WT	DX-05WT	DX-08WT	DX-10WT	DX-12WT	DX-15WT	DX-20WT
Cooling Capacity (kW)	9.5	16.3	23.5	31.9	40.3	48.2	63.6
Power Consumption (kW)	2.4	4.1	6.0	8.1	10.3	12.4	16.5
Chilled Water (m³/h)	1.6	2.6	4.3	5.5	6.9	8.2	10.8
Cooling Water (m³/h)	2.0	3.2	5.4	6.8	8.6	10.3	13.9
Input Power (kW)	2.3	3.8	5.6	7.5	9.4	11.3	15.0
Refrigerant (R-22) (kg)	1.5	2.5	4.0	5.0	6.2	7.5	10.5

Note: Specifications based on working conditions of cold water inlet temperature 12℃, outlet temperature 7℃, cooling water inlet temperature 30℃, outlet temperature 35℃. Specifications subject to change without notice. Special requirements should be specified before ordering.
