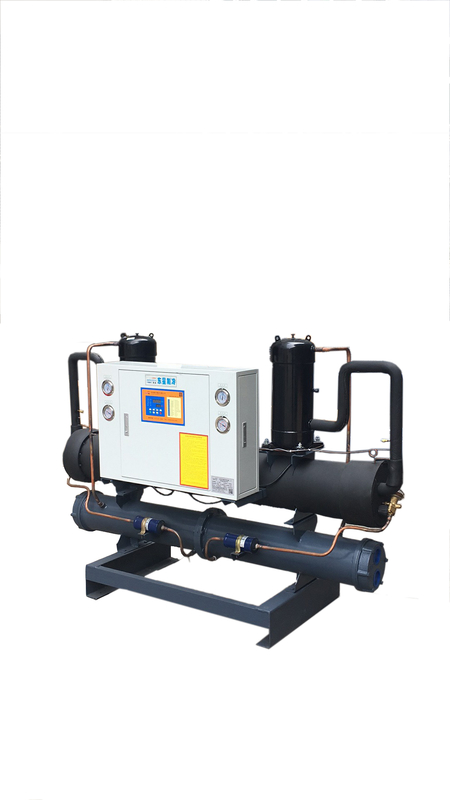

Energy Efficiency Industrial Water Chiller Machine Low Noise 60HZ Floor Standing

Product Details:

Brand Name:	DONGXING

Detail Information

Brand Name:

DONGXING

Temperature Range:

-5°C To 30°C

Feature:

High Efficiency

Frequency:

50HZ/60HZ

Cooling Water Range:

20～40℃;

Length:

1950mm

Water Tank:

270 L

Chiller Water:

1429.1 M3/H

Compressor:

15hp

Type:

Water Cooled Chiller

Mounting:

Floor Standing

Pump Brand:

Taiwan Yuanli

Compressor Power:

19.64kw

Function:

Chilling Water

Refrigerant:

R134a

Condenser:

Shell And Tube Type

Highlight:

High Light

Highlight:

Energy Efficiency Industrial Water Chiller Machine

Low Noise Industrial Water Chiller Machine

Floor Standing Industrial Water Cooler

Trading Information

Minimum Order Quantity:

Price:

6000-2000000RMB/Set

Packaging Details:

Plywood case

Delivery Time:

15-30days

Payment Terms:

T/T

Product Description

Industrial Water Chiller with Fully Sealed Low Noise Compressor (5HP-15HP)

Key Features

High-efficiency scroll compressor for precise, stable cooling
Fully sealed low-noise design with minimal vibration
Shell and tube condenser for high heat exchange efficiency
Customizable options: acid-proof, anti-corrosion, frequency conversion, explosion-proof
Energy-saving digital electronic thermostat (+3°C to +50°C control)
Multiple safety protections: delay start, overload current, high/low pressure
Compact design saves space while delivering powerful performance

Technical Specifications

Attribute	Value
Temperature Range	-5°C to 30°C
Cooling Water Range	20～40℃
Compressor Power	19.64kw (15hp)
Water Tank Capacity	270 L
Chiller Water Flow	1429.1 M3/H
Refrigerant	R134a
Condenser Type	Shell and tube
Pump Brand	Taiwan Yuanli
Mounting	Floor Standing

Performance Advantages

Durable Construction: Features imported compressors with low noise and vibration, high-efficiency shell and tube condensers, and premium electrical components for reliable operation.

Energy Efficient: Digital thermostat precisely controls water temperature from +3°C to +50°C, optimizing energy use while maintaining performance.

Safe Operation: Comprehensive protection system includes compressor delay start, overload current protection, high/low pressure safeguards, and electronic time protection.

Flexible Configuration: Units above 10HP offer dual-circuit refrigeration for continuous operation if one circuit fails.

Model Specifications

Model	DX-03WT	DX-05WT	DX-08WT	DX-10WT	DX-12WT	DX-15WT	DX-20WT
Cooling Capacity (kW)	9.5	16.3	23.5	31.9	40.3	48.2	63.6
Power Consumption (kW)	2.4	4.1	6.0	8.1	10.3	12.4	16.5
Chilled Water Flow (m3/h)	1.6	2.6	4.3	5.5	6.9	8.2	10.8
Dimensions (L×W×H mm)	600×500×1100	950×500×1220	1260×500×1220	1260×650×1220	1260×650×1300	1600×650×1300	1600×700×1300
