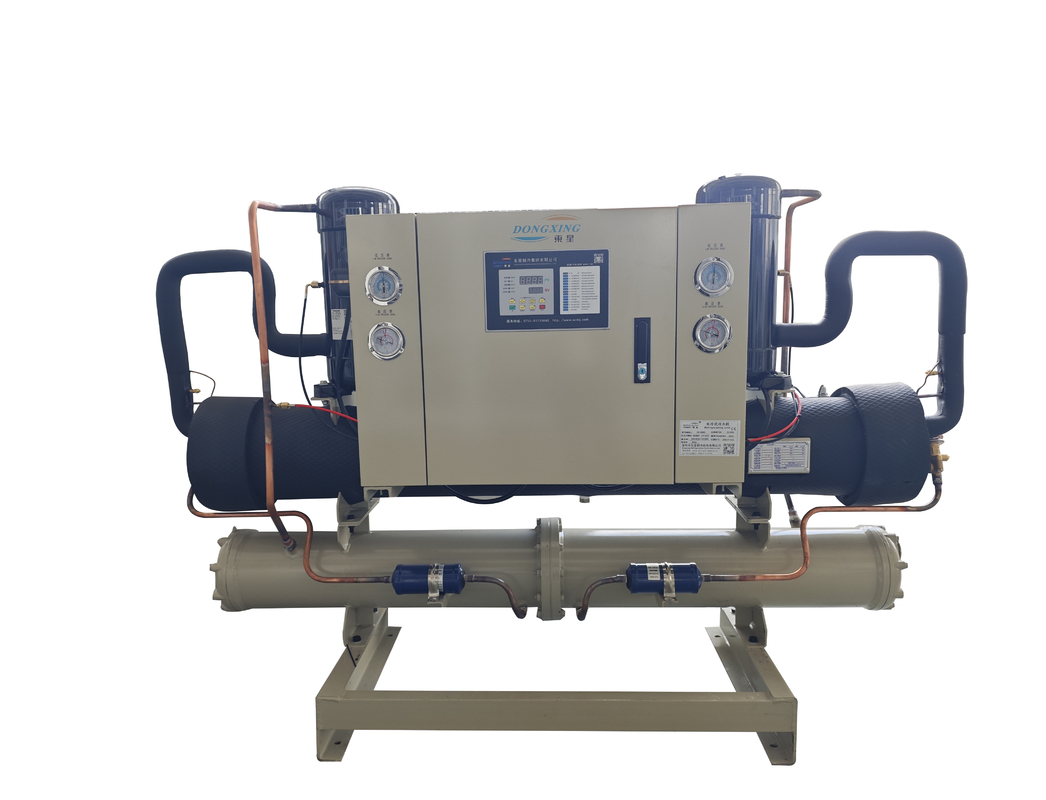

Customizable Commercial Water Chiller System Easy Cleanup 30HP With Hanbell Compressor

Product Details:

Brand Name:	DONGXING

Detail Information

Brand Name:

DONGXING

Power Supply:

3 Phase, 380V/50Hz

Category:

Refrigerating Machine

Temperature Range:

5-35 Degrees Celsius

Power:

380v/ 3phase /50hz

Pipe Diameter:

65DN

Color:

Blue

Other Configuration:

According To The Clients

Material:

Printed

Chilled Water:

5~35C

Circuit Number:

Cooliong Capacity:

10Ton

Showroom Location:

None

Compressor Brand:

Hanbell Compressor

Mode Number:

AC-255WS

Highlight:

High Light

Highlight:

Commercial Water Chiller System

Easy Cleanup Commercial Water Chiller System

Hanbell Compressor Industrial Water Cooled Chiller

Trading Information

Minimum Order Quantity:

Price:

6000-2000000RMB/Set

Packaging Details:

Plywood case

Delivery Time:

15-30days

Payment Terms:

T/T

Product Description

Customizable Industrial Water Chiller with Shell Tube Condenser (20HP-30HP)

Key Features

High heat exchange efficiency with easy-to-clean shell tube condenser
Customizable options: acid-proof, anti-corrosion, frequency conversion, explosion-proof
Energy efficient operation with digital electronic thermostat control (5-35°C)
Durable construction with imported compressor and brand-name electrical components
Safety features including multiple protection systems for reliable operation
Optional dual-circuit refrigeration for continuous operation (10P and above)

Technical Specifications

Power Supply	3 phase, 380V/50Hz
Temperature Range	5-35°C
Pipe Diameter	65DN
Compressor Brand	Hanbell Compressor
Cooling Capacity	10Ton
Model Number	AC-255WS

Performance Parameters

Model	DX-03WT	DX-05WT	DX-08WT	DX-10WT	DX-12WT	DX-15WT	DX-20WT
Cooling Capacity (kW)	9.5	16.3	23.5	31.9	40.3	48.2	63.6
Power Consumption (kW)	2.4	4.1	6.0	8.1	10.3	12.4	16.5
Chilled Water (m³/h)	1.6	2.6	4.3	5.5	6.9	8.2	10.8

Note: Specifications are based on standard working conditions (cold water inlet 12℃/outlet 7℃, cooling water inlet 30℃/outlet 35℃). Specifications may change due to product improvements. Please confirm requirements before ordering.
