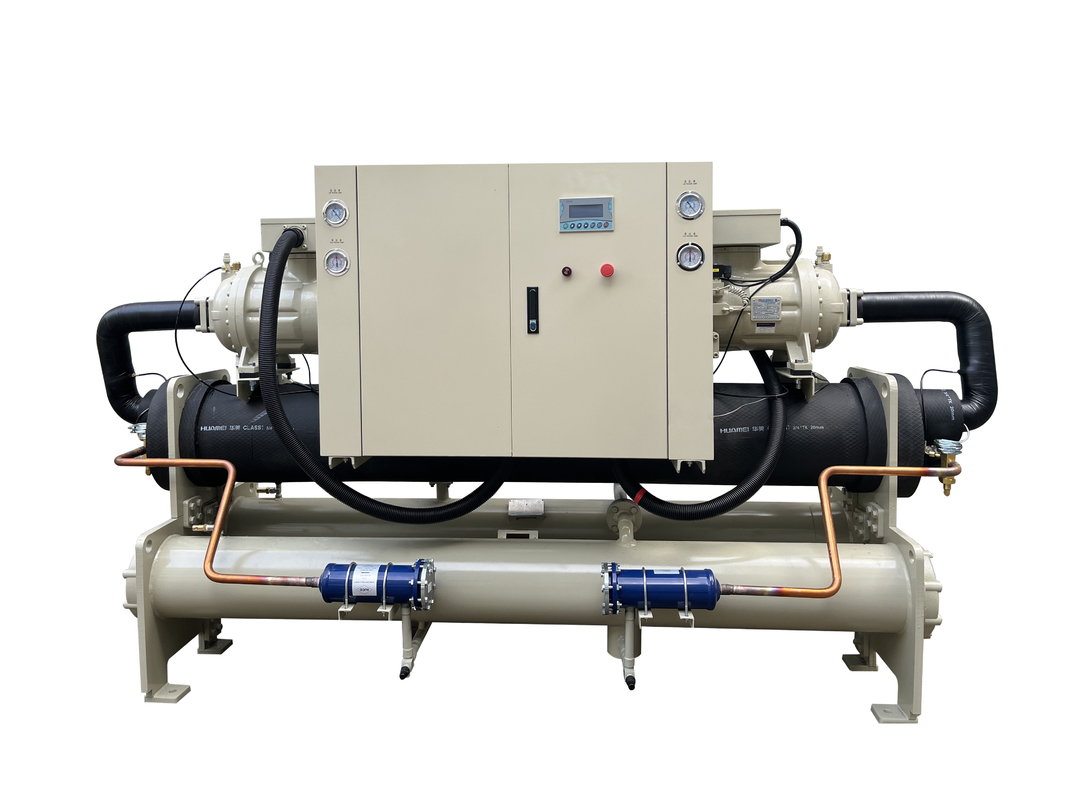

Customizable Water Cooled Screw Chiller Low Noise 60HP Screw Water Chiller

Product Details:

Brand Name:	DONGXING

Detail Information

Brand Name:

DONGXING

Cooling Method:

Water-cooled

Cooling Mode:

Air-cooled/Water-cooled

Evaporator:

DONGXING

Safety Protection:

High And Low Pressure Protection, Anti-freezing Protection, Phase Sequence Protection, Overload Protection, Etc.

Condition:

Brand New

Power Supply:

380V/3Ph/50Hz

Fan:

0.35KW*2PCS

Refrigerant Type:

R134a/R407c/R410a

Touch Screen:

WEINTEK

Cooling Temperature:

5℃-35℃

Condenser Fans:

Axial/Centrifugal

Control Mode:

Microcomputer Control

Energy Efficiency:

Up To 30% Energy Saving Compared To Traditional Chillers

Condenser Fan Power:

16KW

Cooling Capacity:

10-500 Tons

Highlight:

High Light

Highlight:

Customizable Water Cooled Screw Chiller

Low Noise Water Cooled Screw Chiller

60HP Screw Water Chiller

Trading Information

Minimum Order Quantity:

Price:

6000-2000000RMB/Set

Packaging Details:

Plywood case

Delivery Time:

15-30days

Payment Terms:

T/T

Product Description

Customizable Water Cooled Screw Chiller with Low Noise and Durable Compressors for Various Cooling Requirements (30HP-60HP)

Product Specifications

Attribute	Value
Cooling Method	Water-cooled
Cooling Mode	Air-cooled/Water-cooled
Evaporator	DONGXING
Safety Protection	High and low pressure protection, anti-freezing protection, phase sequence protection, overload protection, etc.
Condition	Brand new
Power Supply	380V/3Ph/50Hz
Fan	0.35KW*2PCS
Refrigerant Type	R134a/R407c/R410a
Touch Screen	WEINTEK
Cooling Temperature	5℃-35℃
Condenser Fans	Axial/Centrifugal
Control Mode	Microcomputer Control
Energy Efficiency	Up to 30% energy saving compared to traditional chillers
Condenser Fan Power	16KW
Cooling Capacity	10-500 tons

Product Description

This customizable water-cooled screw chiller features low noise operation and durable compressors, suitable for various cooling requirements (30HP-60HP). Options include acid-proof, anti-corrosion, frequency conversion, and explosion-proof configurations.

Key Features:

Compressor: Selected imported brand-name semi-hermetic screw compressors and semi-hermetic reciprocating compressors with excellent performance and low noise operation.
Flexible Configuration: Can be configured as a single machine or multiple machine combination based on customer needs and cooling tonnage requirements.
Intelligent Operation: Compressors automatically alternate operation according to load changes, balancing operating hours to extend chiller service life.
Evaporator: Features internal and external threaded reinforced copper tubes with excellent cooling effect, insulated with 25mm thick PE insulation board to prevent condensation.
Condenser: Constructed with imported trapezoidal low help copper pipes for enhanced heat transfer capacity, with smooth surfaces for easy cleaning and maintenance.
Comprehensive Protection: Includes temperature control switch, antifreeze switch, fusible bolt, high/low pressure switch, overload protector, and compressor protection systems.
Advanced Control: High-intelligence PIC, PC-level computer control system with remote monitoring capability, low failure rate, and high safety factor.

Ideal for commercial buildings like offices, malls, and hotels, this chiller utilizes a high-efficiency screw compressor and water-cooled condenser to transfer heat from indoor spaces to an external water loop. The system provides consistent, energy-efficient cooling with variable load control that adapts to fluctuating occupancy.

Performance Parameters

Model	Cooling Capacity		Power Consumption (KW)	Chilled Water (m³/h)	Cooling Water (m³/h)	Compressor			Frozen Oil (L)	Refrigerant (kg)	Dimensions (mm)		Weight (kg)
Model	KW	Kcal/h	Power Consumption (KW)	Chilled Water (m³/h)	Cooling Water (m³/h)	Input Power (KW)	Type	Capacity Adjustment (%)	Frozen Oil (L)	Refrigerant (kg)	Length	Width	Weight (kg)
DX-030WS	108	92.880	20.3	18	22	22	Semi-hermetic screw	0, 25, 50, 100	7	18	2250	800	1020
DX-040WS	145	124.700	27.8	24	29	30	Semi-hermetic screw	0, 25, 50, 100	7	22	2300	800	1150
DX-050WS	173	148.780	33.2	29	35	36	Semi-hermetic screw	0, 25, 50, 100	7	27	2500	800	1350
DX-060WS	1968	170.280	38.0	33	40	41	Semi-hermetic screw	0, 25, 50, 100	8	32	2500	800	1500
DX-080WS	260	223.600	51.2	46	55	56	Semi-hermetic screw	0, 25, 50, 100	12	42	2600	850	1680
DX-090WS	293	251.980	56.5	50	62	61	Semi-hermetic screw	0, 25, 50, 100	16	48	2800	850	1800
DX-100WS	335	288.100	64.8	54	68	70	Semi-hermetic screw	0, 25, 50, 100	16	54	2800	850	1930
