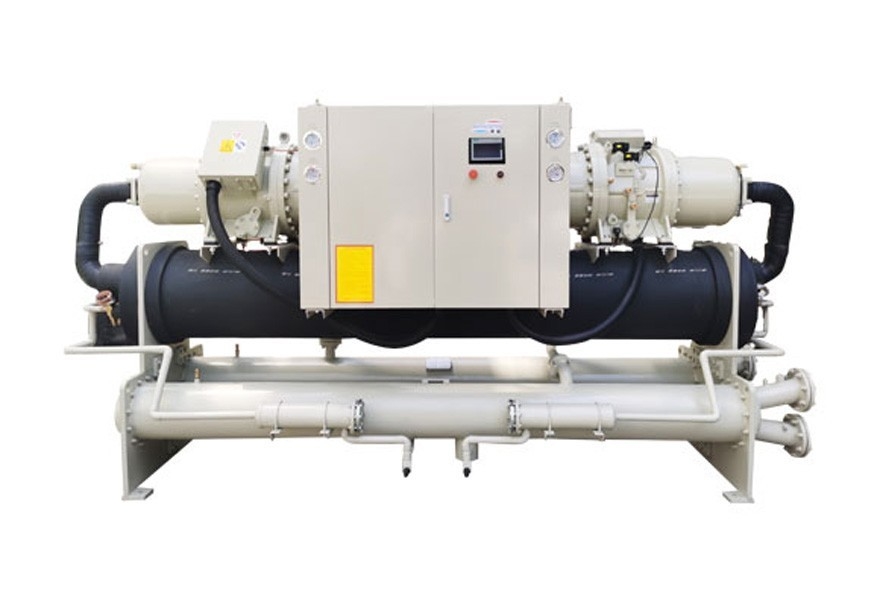

Microcomputer Control Commercial Water Chiller 140kw With Overload Protection

Product Details:

Brand Name:	DONGXING

Detail Information

Brand Name:

DONGXING

Condenser Type:

Shell And Tube

Compressor Quantity:

Double

Temperature Range:

5℃-20℃

Core Components:

PLC,condenser,evaporator

Control Mode:

Microcomputer Control

Chilled Water Flow Rate:

2-400m3/h

Solenoid Valve:

Emerson

Control Temperature:

5 -30 Degree Celsius

Expansion Valve:

Emerson

Power Input:

36KW

Evaparator Type:

Shell And Tube

Cooling Media:

R22/R407/R134

Cooliong Capacity:

140kw

Located:

China

Evaporator Type:

Shell And Tube

Highlight:

High Light

Highlight:

Microcomputer Control Commercial Water Chiller

Overload Protection Commercial Water Chiller

140kw Water Cooled Screw Compressor Chiller

Trading Information

Minimum Order Quantity:

Price:

6000-2000000RMB/Set

Packaging Details:

Plywood case

Delivery Time:

15-30days

Payment Terms:

T/T

Product Description

Water-Cooled Screw (Frequency Conversion) Chiller

Product Specifications

Attribute	Value
Condenser Type	Shell and Tube
Compressor Quantity	Double
Temperature Range	5℃-20℃
Core Components	PLC, condenser, evaporator
Control Mode	Microcomputer Control
Chilled Water Flow Rate	2-400m3/h
Solenoid Valve	Emerson
Control Temperature	5 -30 degree Celsius
Expansion Valve	Emerson
Power Input	36KW
Evaporator Type	Shell and Tube
Cooling Media	R22/R407/R134
Cooling Capacity	140kw
Location	China

Product Features

Customizable options including acid-proof, anti-corrosion, frequency conversion, and explosion-proof configurations

High-performance imported brand semi-hermetic screw and reciprocating compressors with low noise operation

Flexible configuration options from single machine to multiple machine combinations based on cooling requirements

Automatic compressor alternation system balances operating hours and extends service life

Enhanced evaporator with internal/external threaded copper tubes and 25mm PE insulation for optimal cooling efficiency

High-efficiency condenser with imported trapezoidal low help copper pipes for superior heat transfer

Comprehensive protection system including temperature control, antifreeze, high/low pressure switches, and overload protection

Advanced PLC/PC-level computer control system with remote monitoring capabilities

Performance Parameters - Standalone Series

Model	Cooling Capacity		Power Consumption (KW)	Chilled Water (m3/h)	Cooling Water (m3/h)	Input Power (KW)
Model	KW	Kcal/h	Power Consumption (KW)	Chilled Water (m3/h)	Cooling Water (m3/h)	Input Power (KW)
DX-030WS	108	92.880	20.3	18	22	22
DX-040WS	145	124.700	27.8	24	29	30
DX-050WS	173	148.780	33.2	29	35	36
DX-060WS	1968	170.280	38.0	33	40	41
DX-080WS	260	223.600	51.2	46	55	56
DX-090WS	293	251.980	56.5	50	62	61
DX-100WS	335	288.100	64.8	54	68	70

Performance Parameters - Dual Machine Series

Model	Cooling Capacity		Power Consumption (KW)	Chilled Water (m3/h)	Cooling Water (m3/h)	Input Power (KW)
Model	KW	Kcal/h	Power Consumption (KW)	Chilled Water (m3/h)	Cooling Water (m3/h)	Input Power (KW)
DX-060WD	216	185.760	41.0	35	43	22x2
DX-080WD	290	249.400	55.8	48	59	30x2
DX-100WD	346	297.560	66.5	58	70	36x2
DX-120WD	396	340.560	76.2	65	80	41x2
DX-160WD	520	447.200	102.5	90	106	56x2
DX-180WD	586	503.960	113.0	98	122	61x2

Note: 1. Working conditions for capacity determination: chilled water inlet 12℃, outlet 7℃; cooling water inlet 30℃, outlet 35℃; dirt 0.0001m2.cw. 2. Specifications subject to change without notice due to product improvements.
