Explosion Proof Water Cooled Industrial Chiller Acid Resistant Safety Operation

Product Details:

Brand Name:	DONGXING

Detail Information

Brand Name:

DONGXING

Warranty:

1 Year

Voltage:

380V/3P/50Hz, 220V/1P/60Hz

Condenser:

Shell And Tube

Freezing Water Flow:

117.1m3/h

Temperature Control:

5deg C ~ 30deg C

Compressor Control Range:

25-50-75-100%

Application:

Air Conditioning, Industrial Process Cooling, Etc.

Cooling Capa City:

875.8 Kw

Cooliong Capacity:

280kw

Hs Code:

8418692090

Circulation Flow:

123.9 M3/h

Current Frequency:

50Hz/60Hz

Noise Level:

≤70dB(A)

Chilled Water Flow:

15.8~19.5m³/h

Oil Pressure Gauge:

REFCO

Highlight:

High Light

Highlight:

Explosion Proof Water Cooled Industrial Chiller

Acid Resistant Water Cooled Industrial Chiller

Safety Operation Water Cooled Chiller System

Trading Information

Minimum Order Quantity:

Price:

6000-2000000RMB/Set

Packaging Details:

Plywood case

Delivery Time:

15-30days

Payment Terms:

T/T

Product Description

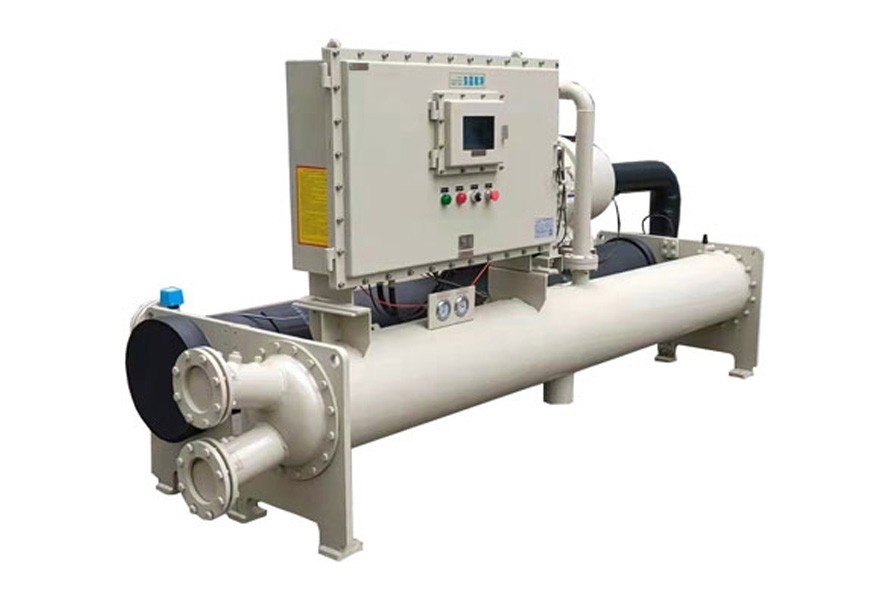

Water-Cooled (Explosion-Proof) Screw Chiller

Product Specifications

Attribute	Value
Warranty	1 year
Voltage	380V/3P/50Hz, 220V/1P/60Hz
Condenser	Shell and Tube
Freezing Water Flow	117.1m³/h
Temperature Control	5°C ~ 30°C
Compressor Control Range	25-50-75-100%
Application	Air conditioning, industrial process cooling
Cooling Capacity	875.8 kW (Primary), 280 kW (Secondary)
HS Code	8418692090
Circulation Flow	123.9 m³/h
Current Frequency	50Hz/60Hz
Noise Level	≤70dB(A)
Chilled Water Flow	15.8~19.5m³/h
Oil Pressure Gauge	REFCO

Product Description

This water-cooled explosion-proof screw chiller can be customized with acid-proof, anti-corrosion, frequency conversion, and explosion-proof features. It utilizes imported brand-name semi-hermetic screw compressors and reciprocating compressors for optimal performance with low noise levels.

Key Features:

Compressor: High-quality imported semi-hermetic screw and reciprocating compressors with automatic load balancing to extend service life
Evaporator: Features threaded reinforced copper tubes with 25mm PE insulation to prevent condensation and minimize cooling loss
Condenser: Equipped with imported trapezoidal low-help copper pipes for enhanced heat transfer and easy maintenance
Protection System: Comprehensive safety devices including temperature control, antifreeze, high/low pressure switches, and overload protectors
Control System: Advanced PLC/PC-level computer control for remote monitoring with low failure rate and high safety factor

Performance Parameters

Model	Cooling Capacity		Power Consumption (KW)	Chilled Water (m³/h)	Cooling Water (m³/h)
Model	KW	Kcal/h	Power Consumption (KW)	Chilled Water (m³/h)	Cooling Water (m³/h)
DX-060WD	216	185,760	41.0	35	43
DX-080WD	290	249,400	55.8	48	59
DX-100WD	346	297,560	66.5	58	70
DX-120WD	396	340,560	76.2	65	80
DX-160WD	520	447,200	102.5	90	106
DX-180WD	586	503,960	113.0	98	122
DX-200WD	670	576,200	130.3	115	138
