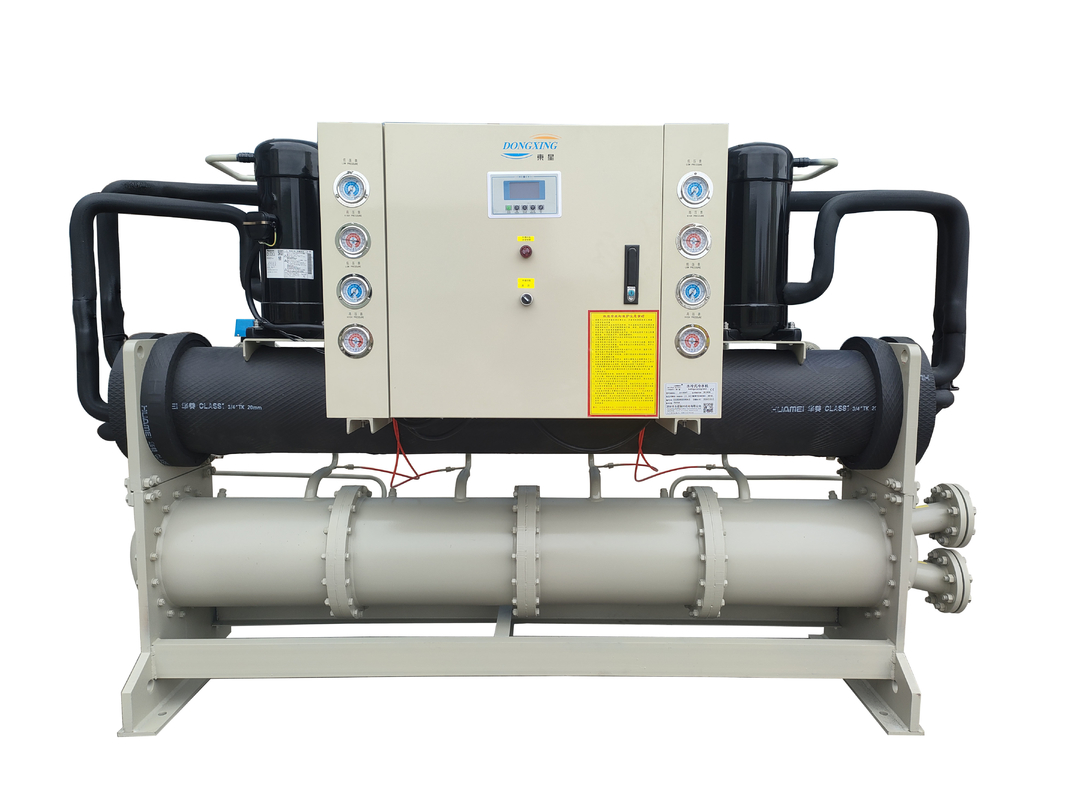

Customizable Industrial Water Chiller Frequency Conversion Commercial Water Chiller Explosion Proof 60HP
Customizable Industrial Water Chiller Frequency Conversion Commercial Water Chiller Explosion Proof 60HP
  • Customizable Industrial Water Chiller Frequency Conversion Commercial Water Chiller Explosion Proof 60HP

Customizable Industrial Water Chiller Frequency Conversion Commercial Water Chiller Explosion Proof 60HP

Product Details:
Brand Name: DONGXING
Detail Information
Brand Name:
DONGXING
Voltage:
3PH~220V/380/415V~50HZ/60HZ,220V,220V/110V,380 V,AC220~240V
Condition:
NEW100%,Brandnew,New,Brand,Customizable Chiller
Warranty:
1 Year,12 Months,2 Years,24 Monthes
Type:
Water-Cooled,water Cooled Chiller,alcohol,Water Cold Chiller,Ethylene Glycol
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Overseas Third-party Support Available,Free Spare Parts
Weight:
250kg,24kg,35KGs,80KG,9.5kg
Refrigerant:
R22/R407C,R407C,R22,R22(R134a,R22/R134a/R407c/R410a
Compressor Type:
Hermetic Scroll,Multipurpose Compressor,scroll Closed Type,screw Compressor
Compressor:
HANBELL
Application:
Industrial Cooling Solutions,CO2 Laser Cutting Engraving Machine,vacuum Coating,construction & Military,Plastic & Rubber / Chemical Etc / Air-conditioning
Product Name:
Water Cooled Chiller,water System Industrial Chiller / Refrigerated Circulating Chiller,CE Quality Water Chiller Air Cooled Chiller Industrial Chiller,Industrial Air Cooled Screw Chiller,industrial Water Chiller
Evaporator:
Tank Coil,Tube-in-shell-style,Plate Heat Exchanger,Stainless Steel Tank With Coil/Shell And Tube
Current:
0.45A
Temperature Range:
3C~50C,5℃ ~ 30℃,thermostatic,3-room Temperature(Below 0,RT+5 -99
Compressor Power:
3HP/5HP/10HP/15HP,46.7kw,80kw ~175KW,7.38 Kw
Power(w):
2150 W,45KW,80W
Highlight:

High Light

Highlight:

Customizable Industrial Water Chiller

,

Frequency Conversion Industrial Water Chiller

,

Explosion Proof Commercial Water Chiller

Trading Information
Minimum Order Quantity:
1
Price:
6000-2000000RMB/Set
Packaging Details:
Plywood case
Delivery Time:
15-30days
Payment Terms:
T/T
Product Description
Customizable Industrial Water Chiller with Frequency Conversion and Explosion-Proof Options (50HP-60HP)
Key Features
  • Customizable options including acid-proof, anti-corrosion, frequency conversion, and explosion-proof configurations
  • High-efficiency imported compressor with low noise and vibration
  • Premium electrical components from internationally recognized brands
  • Shell and tube condenser for superior heat exchange efficiency
  • Comprehensive safety protection systems
  • Energy-saving digital electronic thermostat with precise temperature control (3°C to 50°C)
  • Optional dual-circuit refrigeration for critical applications
Technical Specifications
Attribute Value
Voltage 3PH~220V/380/415V~50HZ/60HZ, 220V, 220V/110V, 380V, AC220~240V
Condition Brand new, customizable chiller
Warranty 1-2 years
Type Water-Cooled, alcohol, ethylene glycol compatible
After-sales Service Overseas technical support, video assistance, spare parts available
Refrigerant R22/R407C, R134a, R410a
Compressor HANBELL hermetic scroll or screw compressor
Applications CO2 laser cutting, vacuum coating, plastic/rubber processing, chemical industries
Performance Parameters
Model DX-03WT DX-05WT DX-08WT DX-10WT DX-12WT DX-15WT DX-20WT
Cooling Capacity (kW) 9.5 16.3 23.5 31.9 40.3 48.2 63.6
Power Consumption (kW) 2.4 4.1 6.0 8.1 10.3 12.4 16.5
Chilled Water Flow (m³/h) 1.6 2.6 4.3 5.5 6.9 8.2 10.8
Dimensions (L×W×H mm) 600×500×1100 950×500×1220 1260×500×1220 1260×650×1220 1260×650×1300 1600×650×1300 1600×700×1300
Note: Specifications based on standard working conditions (cold water inlet 12℃, outlet 7℃; cooling water inlet 30℃, outlet 35℃). Subject to change without notice. Special requirements should be specified before ordering.
Related Products
Customizable Industrial Water Chiller Frequency Conversion Commercial Water Chiller Explosion Proof 60HP 0
Scroll Chiller (10HP-60HP)
Customizable Industrial Water Chiller Frequency Conversion Commercial Water Chiller Explosion Proof 60HP 1
Scroll Chiller (Copeland, Japan, Panasonic)
Customizable Industrial Water Chiller Frequency Conversion Commercial Water Chiller Explosion Proof 60HP 2
Open Water Chiller (Multiple Heads)
System Advantages
  • Durable Construction: Fully-sealed compressor with low vibration and noise levels
  • Energy Efficient: Digital thermostat maintains precise temperature control for optimal performance
  • Safety Features: Includes compressor delay start, overload protection, high/low pressure safeguards
  • Reliable Operation: Optional dual-circuit design ensures continuous cooling during maintenance
  • Easy Maintenance: Shell and tube heat exchangers designed for simple cleaning and service
