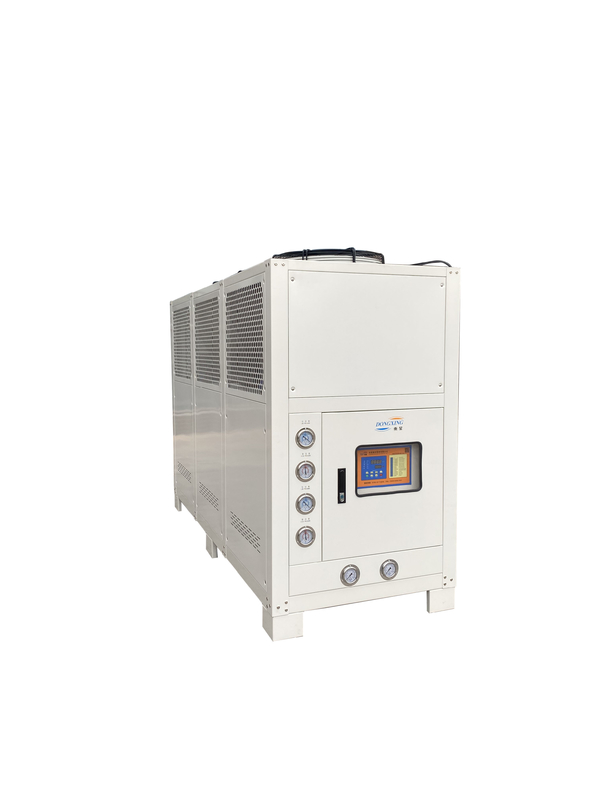

Shell And Tube Condenser 60 Ton Air Cooled Chiller 40HP Customization

Product Details:

Brand Name:	DONGXING

Detail Information

Brand Name:

DONGXING

Condenser Fan Brand:

MAER

Evaporator Type:

Shell And Tube

Condenser Type:

Air Cooled

Controller Brand:

Siemens

Evaporator Water Pump Brand:

Grundfos

Temperature Range:

5-35℃

Noise Level:

≤65dB(A)

Control System:

Microcomputer

Cooling Method:

Air Cooled

Cooling Capacity:

5-100 Tons

Compressor Brand:

Copeland/Bitzer

Power Supply:

380V/3Ph/50Hz

Compressor Type:

Scroll/Screw

Refrigerant:

R410A/R134A

Safety Protection:

High And Low Pressure Protection, Overload Protection, Anti-freezing Protection, Phase Sequence Protection, Etc.

Highlight:

High Light

Highlight:

Customization 60 Ton Air Cooled Chiller

Tube Condenser 60 Ton Air Cooled Chiller

Customization Air Cooled Chiller System

Trading Information

Minimum Order Quantity:

Price:

6000-2000000RMB/Set

Packaging Details:

Plywood case

Delivery Time:

15-30days

Payment Terms:

T/T

Product Description

Shell-and-Tube Condenser for High Heat Exchange Efficiency AirCooled BoxType Industrial Chiller (25HP-40HP)

Product Specifications

Attribute	Value
Condenser Fan Brand	MAER
Evaporator Type	Shell and Tube
Condenser Type	Air Cooled
Controller Brand	Siemens
Evaporator Water Pump Brand	Grundfos
Temperature Range	5-35℃
Noise Level	≤65dB(A)
Control System	Microcomputer
Cooling Method	Air Cooled
Cooling Capacity	5-100 tons
Compressor Brand	Copeland/Bitzer
Power Supply	380V/3Ph/50Hz
Compressor Type	Scroll/Screw
Refrigerant	R410A/R134A
Safety Protection	High and Low Pressure Protection, Overload Protection, Anti-freezing Protection, Phase Sequence Protection, etc.

Product Features

Customizable options including acid-proof, anti-corrosion, frequency conversion, and explosion-proof configurations

High-efficiency shell-and-tube condenser for superior heat exchange and easy maintenance

Energy-saving digital electronic thermostat for precise temperature control (3°C to 50°C)

Comprehensive safety features including compressor delay start protector, over-current protection, and high/low voltage protectors

Air-cooled condenser with steel tube sleeve aluminum fin heat exchanger for stable, efficient performance

Modular design allows for flexible capacity options from small-scale to large industrial applications

Technical Specifications

Parameter	Model	DX-1/2A	DX-01A	DX-02A	DX-03A	DX-04A	DX-05A	DX-06A	DX-08AD
Cooling Capacity (Kw 50Hz/60Hz)		1.53 1.79	2.94 3.44	5.67 6.63	8.39 9.82	10.9 12.75	13.95 16.32	16.9 19.77	21.8 25.51

Parameter	Model	DX-10AD	DX-12AD	DX-15AD	DX-20AD	DX-25AD	DX-30AD	DX-40AD	DX-50AD	DX-60AD
Cooling Capacity (Kw 50Hz/60Hz)		28.01 32.78	33.79 39.53	44.15 51.65	59.08 69.12	71.72 83.91	87.2 102.02	113.58 132.89	135.49 158.52	181.68 218.02

Note: 1. Nominal cooling capacity conditions: chilled water in 12℃, out 7℃; cooling water in 30℃, out 35℃. 2. Specifications are subject to change without notice for further improvement.
