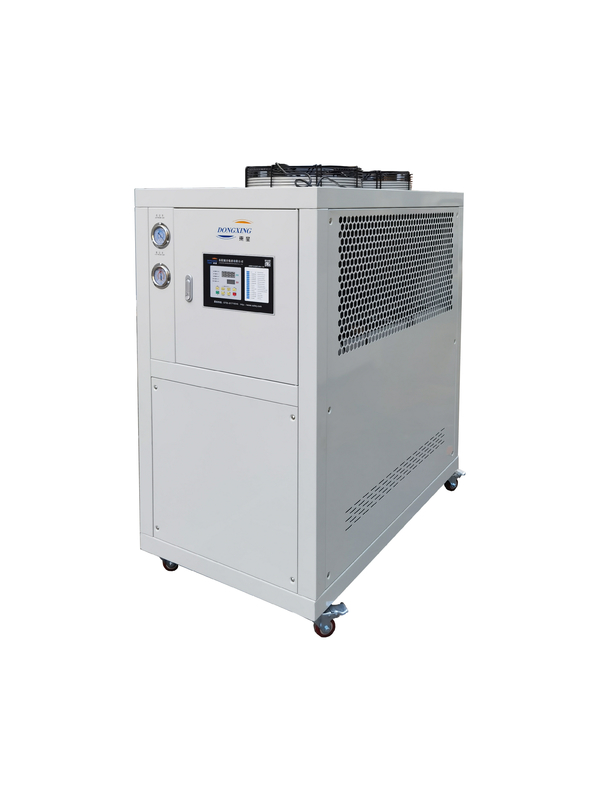

5HP Air Cooled Scroll Chiller Anti Freezing Customized For Office Buildings

Product Details:

Brand Name:	DONGXING

Detail Information

Brand Name:

DONGXING

Weight:

Customized

Noise Level:

≤65dB(A)

Dimension:

Customized

Cooling Method:

Air Cooled

Protection Function:

High/Low Pressure, Overload, Anti-freezing

Cooling Capacity:

5-50 Tons

Evaporator Type:

Shell And Tube

Compressor Type:

Scroll/Screw

Application:

Industrial/Commercial

Warranty:

1 Year

Power Supply:

380V/3Ph/50Hz

Condenser Type:

Shell And Tube

Control System:

Microcomputer

Refrigerant Type:

R-410A/R-134a

Highlight:

High Light

Highlight:

5HP Air Cooled Scroll Chiller

Customized Air Cooled Scroll Chiller

Customized 5 Ton Air Cooled Chiller

Trading Information

Minimum Order Quantity:

Price:

6000-2000000RMB/Set

Packaging Details:

Plywood case

Delivery Time:

15-30days

Payment Terms:

T/T

Product Description

Air-cooled Scroll Chiller (1HP-5HP)

Product Specifications

Attribute	Value
Weight	Customized
Noise Level	≤65dB(A)
Dimension	Customized
Cooling Method	Air Cooled
Protection Function	High/Low Pressure, Overload, Anti-freezing
Cooling Capacity	5-50 tons
Evaporator Type	Shell and Tube
Compressor Type	Scroll/Screw
Application	Industrial/Commercial
Warranty	1 year
Power Supply	380V/3Ph/50Hz
Condenser Type	Shell and Tube
Control System	Microcomputer
Refrigerant Type	R-410A/R-134a

Product Features

Customizable options including acid-proof, anti-corrosion, frequency conversion, and explosion-proof configurations
High-efficiency imported brand compressors with low noise and vibration
Shell-and-tube condenser design for superior heat exchange and easy maintenance
Digital electronic thermostat for precise temperature control (3°C to 50°C)
Comprehensive safety features including delay start protector, over-current protection, and high/low voltage protectors
Energy-efficient operation with optimized heat exchange technology
Available in cooling and heating dual-purpose models

Technical Specifications

Parameter	Model
Parameter	DX-1/2A	DX-01A	DX-02A	DX-03A	DX-04A	DX-05A	DX-06A	DX-08AD
Cooling Capacity (Kw 50Hz/60Hz)	1.53 1.79	2.94 3.44	5.67 6.63	8.39 9.82	10.9 12.75	13.95 16.32	16.9 19.77	21.8 25.51
Total input (KW)	0.68	1.31	2.6	3.6	4.5	5.5	6.6	8.6
Power Supply	1N-220V 50Hz/60Hz				3N-380V/415V 50Hz/60Hz
Compressor Type	Hermetic Rotary		Hermetic Scroll or Piston

Note: 1. Nominal cooling capacity conditions: chilled water in 12℃, out 7℃; cooling water in 30℃, out 35℃. 2. Specifications are subject to change without notice for further improvement.
