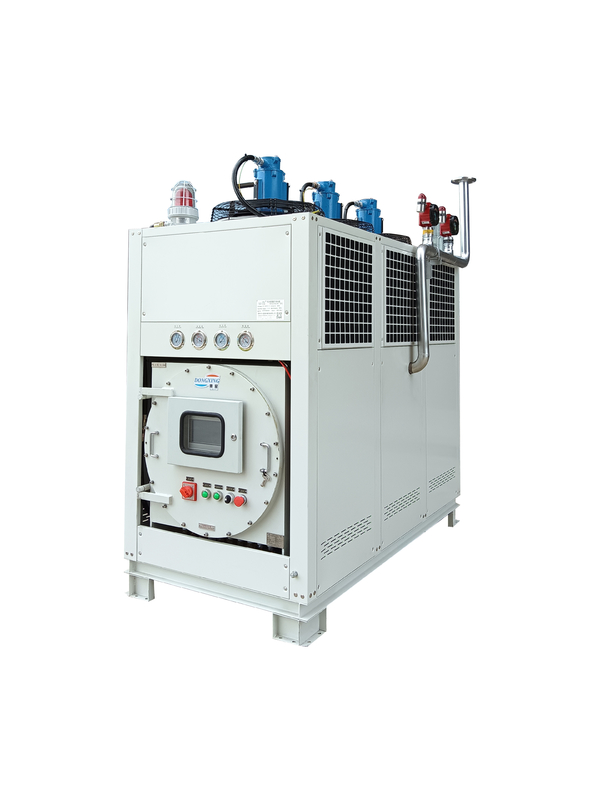

Compact 100 Ton Air Cooled Chiller 200HP Explosion Proof With Overload Protection

Product Details:

Brand Name:	DONGXING

Detail Information

Brand Name:

DONGXING

Power Supply:

380V/3Ph/50Hz

Unit Structure:

Compact Design With Built-in Water Tank And Water Pump

Condenser Fan Brand:

EBM/Panasonic

Refrigerant:

R410A/R134a

Protection Function:

High And Low Pressure Protection, Water Flow Protection, Phase Sequence Protection, Overload Protection, Etc.

Evaporator Type:

Shell And Tube

Evaporator Water Pump Brand:

CNP

Condenser Water Pump Brand:

CNP

Condenser Type:

Air Cooled

Compressor Brand:

Copeland/Bitzer

Compressor Type:

Scroll/Screw

Control System:

Microcomputer

Cooling Capacity:

5-500 Tons

Temperature Range:

5-25℃

Highlight:

High Light

Highlight:

Compact 100 Ton Air Cooled Chiller

200HP 100 Ton Air Cooled Chiller

Explosion Proof Air Cooled Chiller System

Trading Information

Minimum Order Quantity:

Price:

6000-2000000RMB/Set

Packaging Details:

Plywood case

Delivery Time:

15-30days

Payment Terms:

T/T

Product Description

Wind Cooled Explosion-Proof Vortex Chiller CT4 (5HP-200HP)

Key Specifications

Power Supply	380V/3Ph/50Hz
Unit Structure	Compact design with built-in water tank and water pump
Condenser Fan Brand	EBM/Panasonic
Refrigerant	R410A/R134a
Protection Function	High and low pressure protection, water flow protection, phase sequence protection, overload protection
Evaporator Type	Shell and Tube
Water Pump Brand	CNP (Evaporator & Condenser)
Condenser Type	Air Cooled
Compressor Brand	Copeland/Bitzer
Compressor Type	Scroll/Screw
Control System	Microcomputer
Cooling Capacity	5-500 tons
Temperature Range	5-25℃

Product Features

CT4-certified for explosive environments with robust construction
Customizable options: acid-proof, anti-corrosion, frequency conversion, explosion-proof
High-efficiency imported brand compressors (fully-sealed, low-noise, low-vibration)
Premium electrical components with imported brand originals
Shell-and-tube condenser for superior heat exchange efficiency and easy maintenance
Digital electronic thermostat for precise temperature control (3°C to 50°C)
Comprehensive safety features including delay start protector, over-current protection, and safety valves
Energy-efficient design reduces electricity costs, especially during peak cooling seasons
Compact footprint ideal for space-constrained industrial installations
Factory assembled and tested for reliable performance

Condenser Technology

The air-cooled condenser features steel tube sleeve aluminum fin heat exchangers with single/multi-circuit design. The larger-than-standard coil heat exchange area ensures uniform surface wind speed, stable heat exchange, and lasting efficiency. High-efficiency threaded steel pipes with interchangeable end covers allow flexible water pipe direction changes, while the straight-through design simplifies cleaning and maintenance.

Technical Specifications

Model	Cooling Capacity		Total Input (KW)	Max Current (A)	Power Supply
Model	Kw 50Hz/60Hz	Kcal/h 50Hz/60Hz	Total Input (KW)	Max Current (A)	Power Supply
DX-1/2A	1.53/1.79	1316/1540	0.68	4.1	1N-220V
DX-01A	2.94/3.44	2528/2958	1.31	8	1N-220V
DX-10AD	28.01/32.78	24089/28184	11	26.7	3N-380V/415V
DX-60AD	181.68/218.02	156249/187499	68.8	143.1	3N-380V/415V

Note: 1. Nominal cooling capacity conditions: chilled water in 12℃, out 7℃; cooling water in 30℃, out 35℃. 2. Specifications subject to change without notice for improvement.
