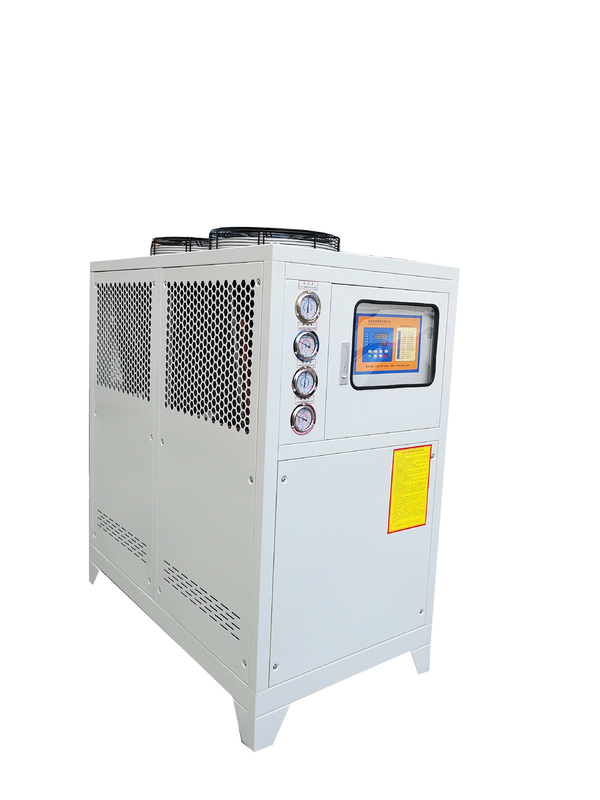

Industrial 150 Ton Air Cooled Chiller 12HP Customizable With Electrical Control

Product Details:

Brand Name:	DONGXING

Detail Information

Brand Name:

DONGXING

Cooling Capacity:

5-150 Tons

Compressor Brand:

Copeland/Bitzer

Power Supply:

3 Phase, 380V/50Hz

Control System:

Microcomputer

Refrigerant:

R-410A

Condenser Fan Brand:

EBM

Noise Level:

≤70dB(A)

Evaporator Type:

Shell And Tube

Protection Functions:

High/Low Pressure, Overload, Anti-freeze, Phase Sequence, Etc.

Temperature Range:

5-20°C

Compressor Type:

Scroll/Screw

Evaporator Water Pump Brand:

Grundfos

Unit Dimension:

Customized According To Customer's Requirements

Condenser Type:

Air Cooled

Highlight:

High Light

Highlight:

Industrial 150 ton air cooled chiller

Customizable 150 ton air cooled chiller

Electrical Control Air Cooled Chiller System

Trading Information

Minimum Order Quantity:

Price:

6000-2000000RMB/Set

Packaging Details:

Plywood case

Delivery Time:

15-30days

Payment Terms:

T/T

Product Description

High-Efficiency Air-Cooled Box-Type Industrial Chiller (8HP-12HP)

Customizable with acid-proof, anti-corrosion, frequency conversion, and explosion-proof options. Features fully-sealed, low-noise, high-efficiency imported compressors and premium electrical components for reliable performance.

Key Specifications

Cooling Capacity:

5-150 tons

Compressor Brands:

Copeland/Bitzer (Scroll/Screw type)

Power Supply:

3 phase, 380V/50Hz

Temperature Range:

5-20°C

Noise Level:

≤70dB(A)

Refrigerant:

R-410A

Advanced Features

Microcomputer control system for precise temperature regulation
Premium components: EBM condenser fans and Grundfos water pumps
Shell and tube evaporator for high heat exchange efficiency
Comprehensive protection: High/Low pressure, overload, anti-freeze, phase sequence
Factory assembled and tested for reliable operation
Optional cooling/heating dual-purpose configuration

Technical Specifications

Parameter	Model DX-08AD	Model DX-12AD	Model DX-30AD
Cooling Capacity (Kw 50Hz/60Hz)	21.8/25.51	33.79/39.53	87.2/102.02
Total Input (KW)	8.6	13.3	33.7
Compressor Motor (Kw)	3x2	4.5x2	11.3x2
Chilled Water Flow (m3/h)	3.75/4.39	5.81/6.8	15/17.55
Dimensions (LxWxH mm)	1470x710x1700	1460x800x1780	2080x1000x2055

Note: Nominal cooling capacity conditions: chilled water in 12℃, out 7℃; cooling water in 30℃, out 35℃. Specifications subject to change without notice.
