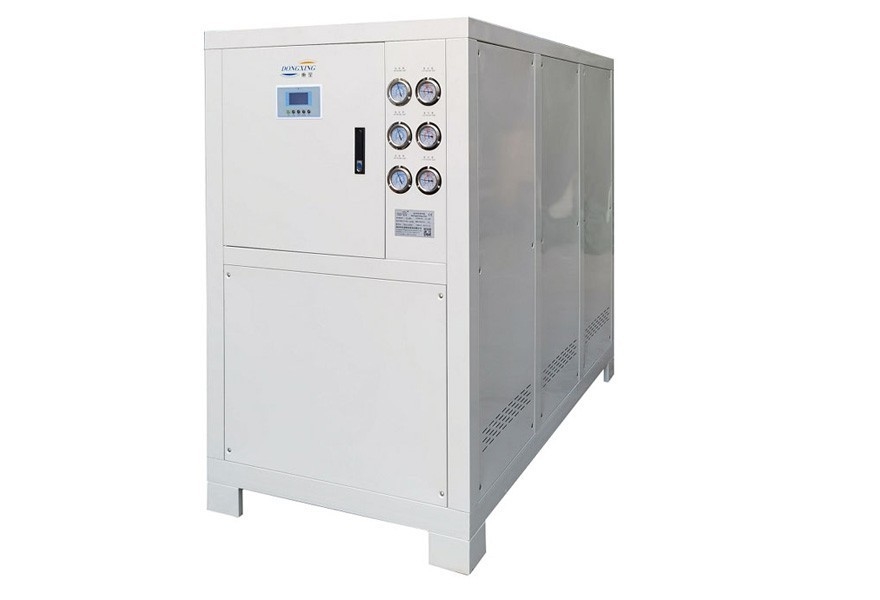

400V 3ph Industrial Water Cooled Chiller Anti Corrosion Safety Customizable

Product Details:

Brand Name:	DONGXING

Detail Information

Brand Name:

DONGXING

Packing:

Standard Wooden Pallet

Condenser:

Shell And Tube

Condenser Fan Brand:

EBM/Panasonic

Standard Voltage:

380-400V,3ph,50hz

Type:

Air-cooled

Condenser Fans:

Axial/Centrifugal

Condenser Type:

Shell And Tube/Plate Heat Exchanger

Evaporating Temp:

7.5℃

Cooling Capacity:

5-5000 Tons

Control:

SCM Or PLC

Water Flow:

9.48m3/h

Output Water Turbidity:

≤10 Degree

Electric Parts:

Schneider

Cooling Source:

Water Cooled

Product Type:

Modular Type

Highlight:

High Light

Highlight:

400V Industrial Water Cooled Chiller

Anti Corrosion Industrial Water Cooled Chiller

Safety

Trading Information

Minimum Order Quantity:

Price:

6000-2000000RMB/Set

Packaging Details:

Plywood case

Delivery Time:

15-30days

Payment Terms:

T/T

Product Description

Water-Cooled Body Head Series Cooling Machine

Key Features

Customizable options including acid-proof, anti-corrosion, frequency conversion, and explosion-proof configurations
High-efficiency imported compressor with low noise and minimal vibration
Shell and tube type cooling condenser for superior heat exchange efficiency
Digital electronic thermostat for precise temperature control (3℃ to 50℃)
Comprehensive safety features including delay start protector, overcurrent relay, and pressure safeguards
Factory assembled and tested for reliable performance

Technical Specifications

Packing	Standard wooden pallet
Condenser	Shell and tube
Condenser Fan Brand	EBM/Panasonic
Standard Voltage	380-400V, 3ph, 50hz
Type	Air-cooled
Cooling Capacity	5-5000 tons
Control System	SCM or PLC
Water Flow	9.48m³/h
Electric Parts	Schneider
Product Type	Modular Type

Performance Specifications

Parameter	DX-03W	DX-04W	DX-05W	DX-06W
Cooling Capacity (Kw 50Hz/60Hz)	9.59/11.22	12.43/14.54	15.91/18.62	19.18/22.45
Total Input (kW)	2.8	3.55	4.3	5.2
Power Supply	3N-380V/415V 50Hz/60Hz
Refrigerant	R22
Compressor Type	Hermetic gyral or piston

Product Images

Customization Options

This water-cooled box type chiller can be customized for both hot and cold applications, with options for acid-proof, anti-corrosion, frequency conversion, and explosion-proof configurations to meet specific industrial requirements.
