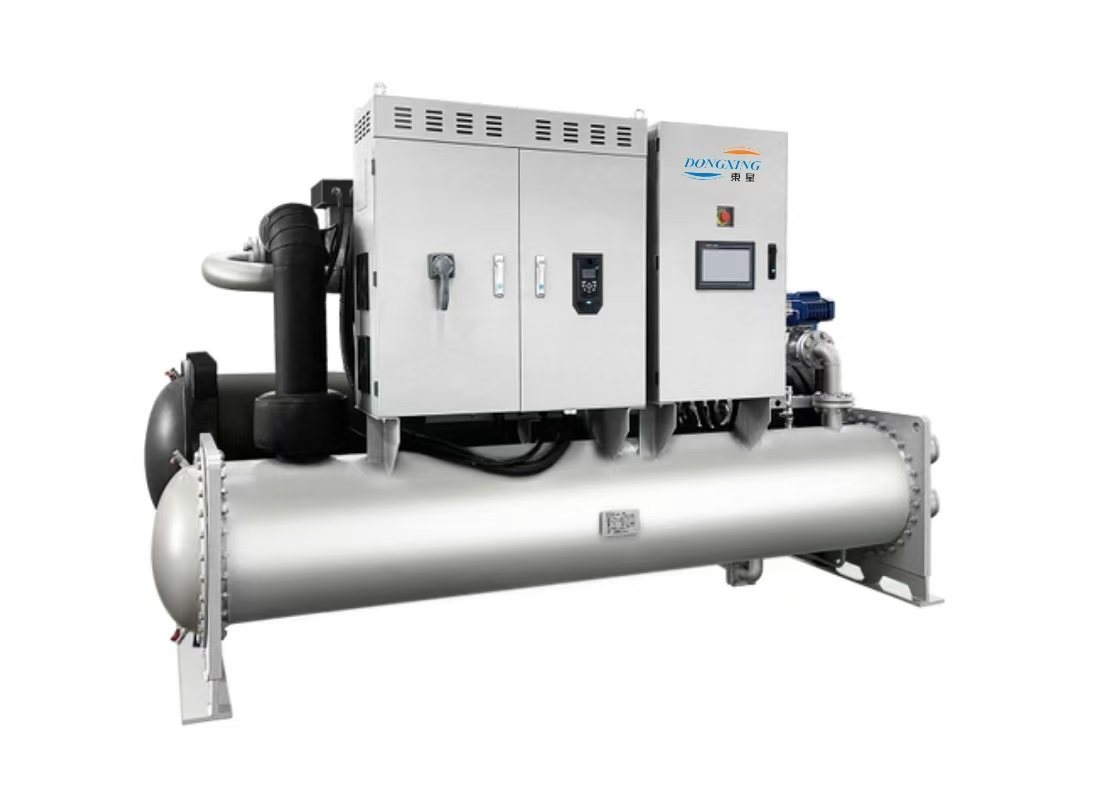

Air Suspension Industrial Water Cooled Chiller Variable Frequency 1000RT 380V 50Hz 3Ph

Product Details:

Brand Name:	DONGXING
Certification:	ISO

Detail Information

Brand Name:

DONGXING

Certification:

ISO

Refrigeration:

R134A

After Warranty Service:

Video Technical Support

Electric Parts:

Schneider

Evaporator Type:

Shell And Tube

Noise Level:

≤75dB(A)

Product Type:

Air-Suspension Variable-Frequency Water Chiller

Work Mode:

Cooling Only

Capacity Control:

Frequency Conversion

Warranty:

1 Year

Power Supply:

380V/50Hz/3Ph

Controller:

Microprocessor

Condenser Type:

Shell And Tube

Voltage:

380V~420V/3Y/50Hz

Chiller Capacity:

179USRT

Highlight:

High Light

Highlight:

Air Suspension Industrial Water Cooled Chiller

380V 50Hz Industrial Water Cooled Chiller

3Ph Industrial Water Cooler

Trading Information

Minimum Order Quantity:

Price:

6000-2000000RMB/Set

Packaging Details:

Plywood case

Delivery Time:

25-30DAYS

Payment Terms:

T/T

Product Description

Air Suspension Industrial Water Cooled Chiller Variable Frequency 1000RT 380V 50Hz 3Ph

Product Specifications

Attribute	Value
Refrigeration	R134A
After Warranty Service	Video technical support
Electric Parts	Schneider
Evaporator Type	Shell and Tube
Noise Level	≤75dB(A)
Product Type	Air-Suspension Variable-Frequency Water Chiller
Work Mode	Cooling only
Capacity Control	Frequency conversion
Warranty	1 year
Power Supply	380V/50Hz/3Ph
Controller	Microprocessor
Condenser Type	Shell and Tube
Voltage	380V~420V/3Y/50Hz
Chiller Capacity	179USRT

Product Description

The Air-Suspension Variable-Frequency Water Chiller (75RT-1000RT) revolutionizes refrigeration efficiency with cutting-edge technology.

Key features and benefits:

Air Suspension Bearing Technology: Forms an air film between bearing and rotor for frictionless operation, reducing energy consumption and extending service life
Intelligent Frequency Conversion: Adjusts compressor speed based on load changes for precise cooling and optimal energy efficiency
30-40% Higher Energy Efficiency compared to traditional units, significantly reducing operating costs
Precision Temperature Control: Maintains accuracy within ±0.1℃ for sensitive applications
Low Noise Operation: Below 70 decibels for noise-sensitive environments
Minimal Maintenance: No lubricating oil system required - only annual air filter replacement needed
Environmentally Friendly: Uses R134A refrigerant meeting international standards

Ideal for industrial manufacturing, data centers, and other applications requiring efficient, reliable cooling solutions.

Technical Specifications

Model number	DQWV75SA	DQWV9OSA	DQWV200SA	DQWV250SA	DQWV400TA	DQWV450TA
Model number	Refrigeration Capacity
kW	265	315	701	855	1405	1580
USRT	75.4	89.6	199.4	243.2	399.6	449.4
kcal/h	227,900	270,900	602,860	735,300	1,208,300	1,358,800
Power consumption (kW)	42.9	51.2	107.5	130.3	206.0	231.3
COP (kW/KW)	6.18	6.15	6.52	6.56	6.82	6.83
IPLV (kW/KW)	8.23	8.18	8.56	8.52	9.15	9.12

Safety & Protection Features

Main circuit fuse protection
Over current protection
Power reverse phase protection
High and low voltage protection
Compressor overheat protection
Abnormal water temperature protection
Sensor anomaly protection
Excessive exhaust temperature protection
Anti-freeze protection
Frozen water pressure difference protection
