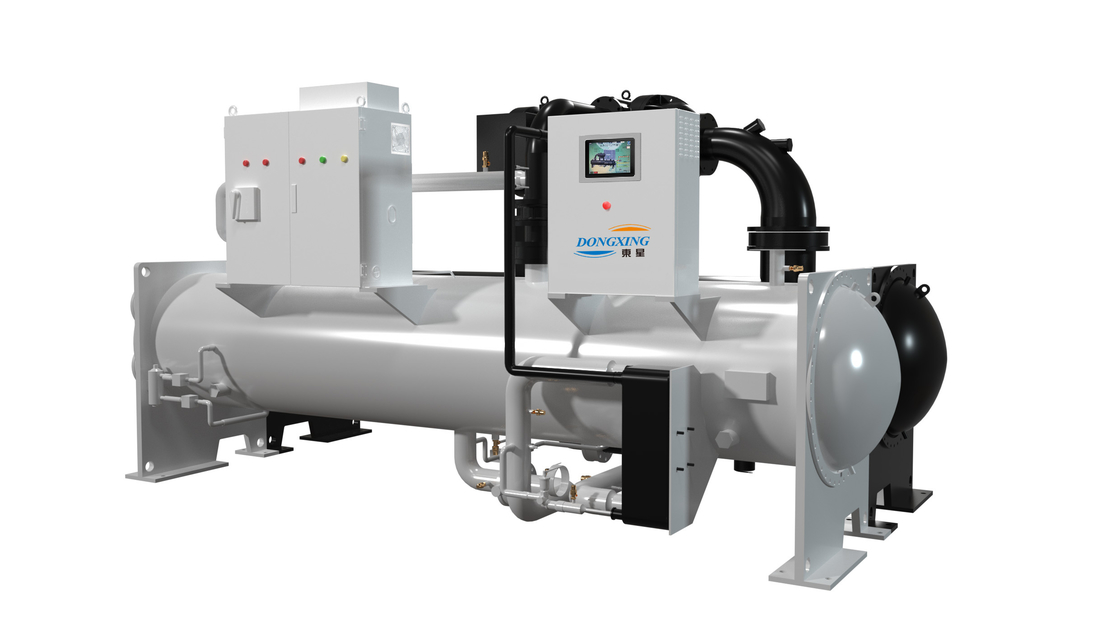

Energy Saving Magnetic Levitation Chiller 3000RT Magnetic Bearing Chiller Customizable

Product Details:

Brand Name:	DONGXING

Detail Information

Brand Name:

DONGXING

Refrigerant:

R134a

Compressor Type:

Magnetic Levitation Centrifugal

Control System:

Microprocessor-based Controller

Safety Features:

High/Low Pressure Protection, Anti-freezing Protection, Overload Protection

Power Supply:

380-460 V, 3-phase, 50/60 Hz

Certifications:

CE, UL, CSA, ISO

Operating Temperature:

5-35°C

Warranty:

1 Year

Efficiency:

Up To 40% More Efficient Than Traditional Chillers

Cooling Capacity:

1000-5000 KW

Display:

LCD Touch Screen

Dimensions:

Customizable

Weight:

Varies Depending On Cooling Capacity

Compressor Speed:

Variable Speed

Noise Level:

Less Than 70 DB

Highlight:

High Light

Highlight:

Energy Saving Magnetic Levitation Chiller

Customizable Magnetic Compressor Chiller

3000RT Magnetic Bearing Chiller

Trading Information

Minimum Order Quantity:

Price:

6000-2000000RMB/Set

Packaging Details:

Plywood case

Delivery Time:

15-30days

Payment Terms:

T/T

Product Description

State-of-the-Art Magnetic Levitation Chiller for Energy-Saving Cooling Solutions (150RT-3000RT)

Key Features

Magnetic levitation technology eliminates mechanical friction
Up to 40% more efficient than traditional chillers
Variable speed compressor for precise cooling capacity adjustment
Oil-free operation reduces maintenance costs
Compact design with noise levels below 70 dB
Microprocessor-based control system
Multiple safety protections including high/low pressure and anti-freezing

Technical Specifications

Attribute	Value
Refrigerant	R134a
Compressor Type	Magnetic Levitation Centrifugal
Control System	Microprocessor-based controller
Power Supply	380-460 V, 3-phase, 50/60 Hz
Cooling Capacity	1000-5000 kW
Operating Temperature	5-35°C
Display	LCD Touch Screen
Certifications	CE, UL, CSA, ISO
Warranty	1 year

Performance Advantages

Magnetic levitation chillers offer superior energy efficiency by eliminating mechanical friction through magnetic bearings, reducing energy consumption by up to 30% compared to conventional models. The oil-free operation extends component lifespan while eliminating lubrication maintenance and contamination risks.

The high-precision variable-speed control enables real-time adjustment of cooling capacity to match load demands, ensuring stable performance while optimizing energy use. These units are ideal for both commercial buildings and industrial applications.

With their compact footprint and quiet operation (below 70 dB), these chillers provide flexible installation options and minimal environmental disruption.

Model Specifications

Standard Operating Conditions:

Evaporator: Inlet water temperature 12℃, Outlet water temperature 7℃

Condenser: Inlet water temperature 30℃, Outlet water temperature 35℃

Flange connection design for both condenser and evaporator

Standard water side pressure: 1.0MPa (higher pressures available upon request)

Unit conversion: 1RT (US refrigeration tons) = 3.517kW

Note: Performance parameters are subject to change without notice due to product improvements.
