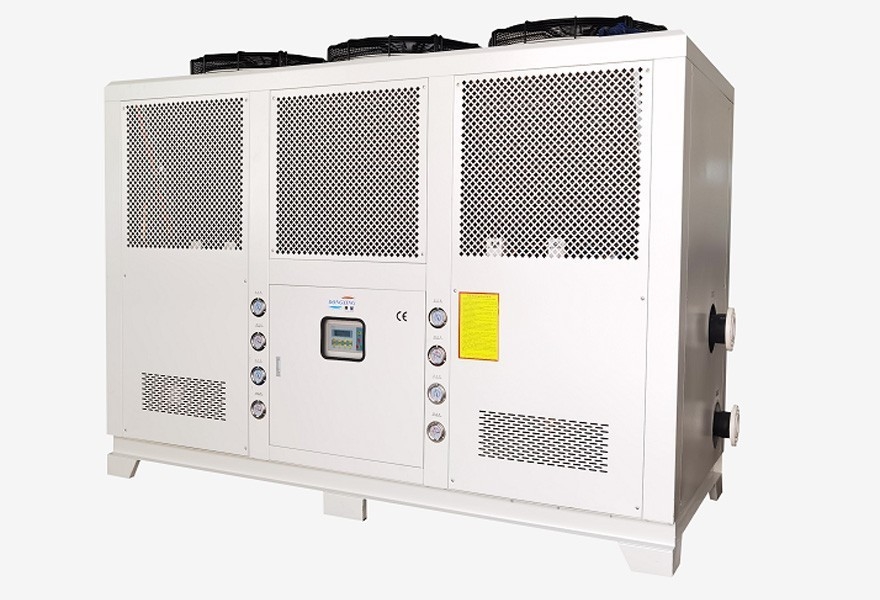

3Ph 50Hz Air Cooled Screw Chiller Chemical Industries Low Temp Chiller

Product Details:

Brand Name:	DONGXING

Detail Information

Brand Name:

DONGXING

Evaporator Water Pump Brand:

Grundfos

Control System:

Microcomputer

Warranty:

1 Year For The Whole Unit, 2 Years For Compressor

Condenser Type:

Air Cooled

Compressor Brand:

Danfoss/Bitzer/Copeland

Cooling Capacity:

5-100 Tons

Evaporator Type:

Shell And Tube

Condenser Fan Brand:

EBM

Safety Protection:

High And Low Pressure Protection, Water Flow Protection, Phase Sequence Protection, Overload Protection, Etc.

Compressor Type:

Scroll/Screw

Temperature Range:

-40℃ To -10℃

Power Supply:

380V/3Ph/50Hz

Control Panel Brand:

Schneider

Refrigerant:

R-404A

Highlight:

High Light

Highlight:

Chemical Industries Air Cooled Screw Chiller

50Hz 100 Ton Air Cooled Chiller

Chemical Industries Low Temp Chiller

Trading Information

Minimum Order Quantity:

Price:

6000-2000000RMB/Set

Packaging Details:

Plywood case

Delivery Time:

15-30days

Payment Terms:

T/T

Product Description

Air-Cooled Low-Temperature Screw Chiller (-5℃-85℃)

Product Specifications

Attribute	Value
Evaporator Water Pump Brand	Grundfos
Control System	Microcomputer
Warranty	1 year for the whole unit, 2 years for compressor
Condenser Type	Air Cooled
Compressor Brand	Danfoss/Bitzer/Copeland
Cooling Capacity	5-100 tons
Evaporator Type	Shell and Tube
Condenser Fan Brand	EBM
Safety Protection	High and low pressure protection, water flow protection, phase sequence protection, overload protection, etc.
Compressor Type	Scroll/Screw
Temperature Range	-40℃ to -10℃
Power Supply	380V/3Ph/50Hz
Control Panel Brand	Schneider
Refrigerant	R-404A

Product Description

The DX-AL series air-cooled low-temperature chillers are a new generation of refrigeration equipment designed specifically for pharmaceutical, chemical, and other specialized industries. These units offer adjustable temperature control between -5°C and 85°C, with customization options available for acid-proof, anti-corrosion, frequency conversion, and explosion-proof applications.

Smaller capacity models feature French "Maneurop" compressors, while larger models utilize internationally renowned screw compressors from brands like Taiwan Han Bell and Zell. The series provides ample refrigeration capacity with complete specifications, representing the latest in refrigeration technology.

Technical Parameters

DX-AL Low Temperature Chiller (-5℃)
Model Item	DX-03AL	DX-05AL	DX-08AL	DX-10AL	DX-12AL	DX-15AL	DX-20AL	DX-25AL	DX-30AL	DX-40AL
Cooling capacity (kcal/h)	3327	5184	8241	11607	14,315	17410	23214	18631	26696	38691
Cooling capacity (kw)	3.87	6.03	9.58	13.5	16.65	20.25	27	33.3	31.05	45
Input total power (KW)	3.18	4.86	7.25	9.4	10.9	13.47	18.8	22.55	28.5	36
Power supply	3PH 380V 50HZ
Refrigerant	R22
Control method	Externally balanced thermal expansion valve
Compressor type	Fully enclosed scroll type (piston type)
Compressor power (KW)	2.25	3.75	6	7.5	9	11.25	7.5*2	9.37*2	22.5	30
Condenser type	High efficiency copper tube sleeve aluminum fin type + low noise external rotor fan
Evaporator type	Water tank coil (shell and tube type)
Chilled water volume (m3/h)	0.72	1.11	1.77	2.5	3.08	3.75	4.99	6.61	5.74	8.32
Inlet and outlet pipe diameter	1"	1"	1"	1-1/2″	1-1/2″	2"	2"	2-1/2″	2-1/2″	3″
Water pump power (KW)	0.75	0.75	0.75	1.1	1.1	1.5	2.2	2.2	4	4
Water pump head (M)	18	18	18	20	20	20	20	20	25	20
Safety protection	Compressor overload protection, over current protection, high and low pressure protection, over temperature protection, flow protection, phase sequence/phase loss protection, exhaust overheating protection, antifreeze protection.
Length (mm)	930	1140	1310	1680	1680	1800	2000	2000	2200	2500
Width (mm)	520	560	720	810	810	990	1130	1130	1130	1200
Height (mm)	975	1040	1270	1280	1280	1680	1720	1914	2026	2250
Machine weight (Kg)	135	175	310	450	530	750	835	920	1080	1125

Product Images

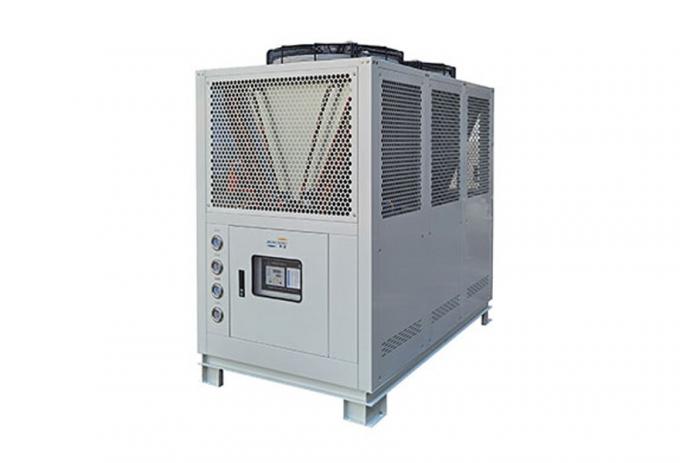

Air-Cooled Low-Temperature Screw Chiller (-5℃-85℃)
