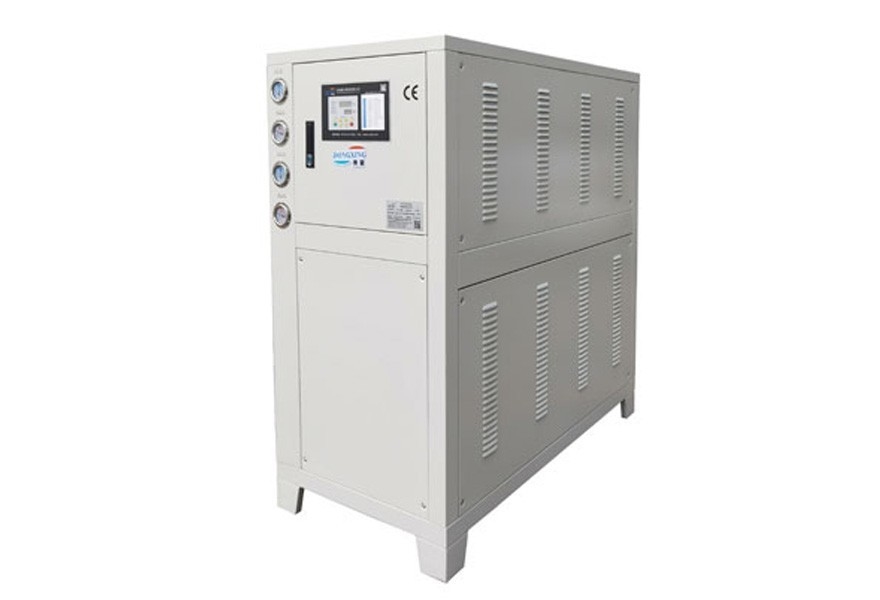

Customized Low Temperature Water Chiller PLC Control Salt Water Low Temp Chillers

Product Details:

Brand Name:	DONGXING

Detail Information

Brand Name:

DONGXING

Protection Function:

High And Low Pressure Protection, Overload Protection, Overheat Protection, Anti-freeze Protection, Phase Sequence Protection, Etc.

Condenser Type:

Shell And Tube/ Plate Heat Exchanger

Control System:

Microcomputer/ PLC

Compressor Type:

Scroll/ Semi-hermetic/ Screw

Noise Level:

≤65dB(A)

Cooling Capacity:

15-500 KW

Cooling Water Flow:

3-100 M³/h

Temperature Range:

-35℃ To 5℃

Water Tank Capacity:

50-1000L

Dimension:

1000*800*1500mm

Weight:

300-1000kg

Refrigerant:

R404a/ R134a/ R407c

Evaporator Type:

Shell And Tube/ Plate Heat Exchanger

Power Supply:

380V/3Ph/50Hz

Highlight:

High Light

Highlight:

Customized Low Temperature Water Chiller

PLC Control Industrial Water Cooled Chiller

Salt Water Low Temp Chillers

Trading Information

Minimum Order Quantity:

Price:

6000-2000000RMB/Set

Packaging Details:

Plywood case

Delivery Time:

15-30days

Payment Terms:

T/T

Product Description

Water-Cooled Low-Temperature Vortex (Salt Water, Glycol) Refrigerator

Key Specifications

Attribute	Value
Protection Function	High and low pressure protection, overload protection, overheat protection, anti-freeze protection, phase sequence protection, etc.
Condenser Type	Shell and Tube/ Plate Heat Exchanger
Control System	Microcomputer/ PLC
Compressor Type	Scroll/ Semi-hermetic/ Screw
Noise Level	≤65dB(A)
Cooling Capacity	15-500 kW
Cooling Water Flow	3-100 m³/h
Temperature Range	-35℃ to 5℃
Water Tank Capacity	50-1000L
Dimension	10008001500mm
Weight	300-1000kg
Refrigerant	R404a/ R134a/ R407c
Evaporator Type	Shell and Tube/ Plate Heat Exchanger
Power Supply	380V/3Ph/50Hz

Product Description

The DX-WL series water-cooled low-temperature chiller is a specialized refrigeration solution designed for demanding industrial applications in pharmaceutical and chemical industries. This advanced equipment features customizable options including acid-proof, anti-corrosion, frequency conversion, and explosion-proof configurations.

Key features include:

Adjustable temperature range from -5°C to 85°C
High-performance French "Maneurop" compressor
Comprehensive cooling charging circuit
Complete specifications for versatile industrial applications

Technical Parameters (-5℃ Configuration)

Model item	Model Specifications
Model item	DX-03WL	DX-05WL	DX-08WL	DX-10WL	DX-12WL	DX-15WL	DX-20WL	DX-25WL	DX-30WL	DX-40WL
Cooling capacity (kcal/h)	4127	6448	10102	14100	17453	21323	28201	34907	33962	49868
Cooling capacity (kw)	4.8	7.5	11.75	16.4	20.3	24.8	32.8	40.6	39.5	58

Product Images

Low Temperature Screw Chiller

Water-Cooled Vortex Refrigerator
