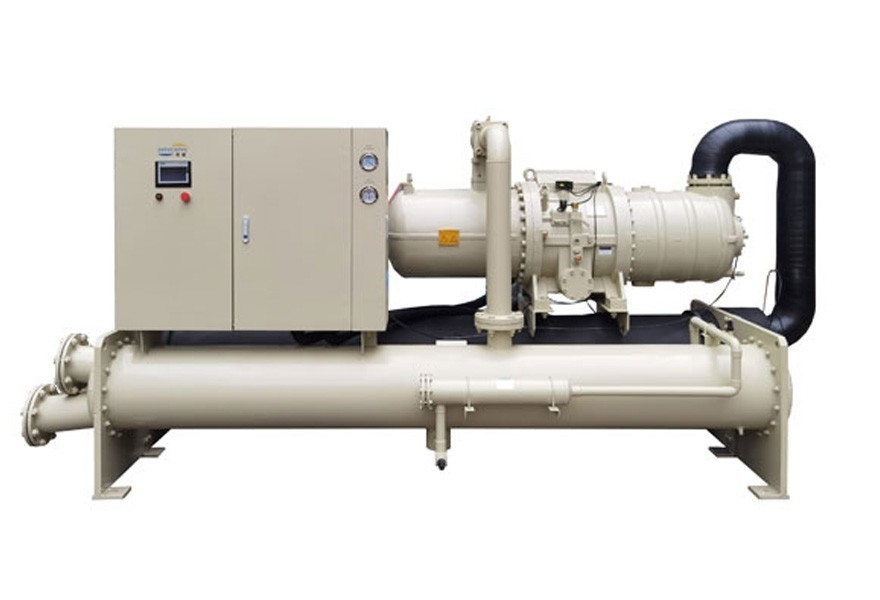

Microcomputer Low Temperature Water Chiller 380V 50Hz Water Cooled Screw Chiller

Product Details:

Brand Name:	DONGXING

Detail Information

Brand Name:

DONGXING

Refrigerant Type:

R404a/R134a

Safety Protection:

High And Low Pressure Protection, Overload Protection, Anti-freezing Protection, Phase Sequence Protection

Control System:

Microcomputer/PLC

Cooling Capacity:

10-200kW

Power Supply:

3 Phase, 380V/50Hz

Cooling Water Flow:

2-40m3/h

Evaporator Type:

Plate/Shell And Tube

Dimension:

Customized According To Customer's Requirements

Condenser Type:

Air-cooled/Water-cooled

Condenser Fan Brand:

Ziehl-Abegg

Evaporator Material:

Stainless Steel/Copper

Compressor Brand:

Copeland/Bitzer

Temperature Range:

-20℃ To -40℃

Compressor Type:

Scroll/Hermetic

Highlight:

High Light

Highlight:

Microcomputer Low Temperature Water Chiller

380V 50Hz industrial water chiller machine

380V 50Hz Water Cooled Screw Chiller

Trading Information

Minimum Order Quantity:

Price:

6000-2000000RMB/Set

Packaging Details:

Plywood case

Delivery Time:

15-30days

Payment Terms:

T/T

Product Description

Low Temperature Screw Chiller -5℃-85℃

Key Specifications

Attribute	Value
Refrigerant Type	R404a/R134a
Safety Protection	High and Low Pressure Protection, Overload Protection, Anti-freezing Protection, Phase Sequence Protection
Control System	Microcomputer/PLC
Cooling Capacity	10-200kW
Power Supply	3 phase, 380V/50Hz
Cooling Water Flow	2-40m³/h
Evaporator Type	Plate/Shell and Tube
Dimension	Customized according to customer's requirements
Condenser Type	Air-cooled/Water-cooled
Condenser Fan Brand	Ziehl-Abegg
Evaporator Material	Stainless Steel/Copper
Compressor Brand	Copeland/Bitzer
Temperature Range	-20℃ to -40℃
Compressor Type	Scroll/Hermetic

Product Description

The DX-WL series water-cooled low-temperature chiller is a specialized refrigeration solution designed for demanding industries including pharmaceuticals and chemicals. Featuring an adjustable temperature range between -5℃ and 85℃, this equipment incorporates high-quality French Maneurop compressors and offers complete refrigeration charging circuits.

Customizable options including acid-proof, anti-corrosion, frequency conversion, and explosion-proof configurations

Precision-engineered for special industrial applications

Comprehensive safety protection systems

Advanced microcomputer/PLC control system

Technical Parameters (-5℃ Model)

Model item	DX-03WL	DX-05WL	DX-08WL	DX-10WL	DX-12WL	DX-15WL	DX-20WL	DX-25WL	DX-30WL	DX-40WL
Cooling capacity (kcal/h)	4127	6448	10102	14100	17453	21323	28201	34907	33962	49868
Cooling capacity (kW)	4.8	7.5	11.75	16.4	20.3	24.8	32.8	40.6	39.5	58
Input total power (KW)	3	4.5	6.75	8.6	10.1	12.75	17.2	20.95	26.5	34
Power supply	3PH 380V 50HZ
